Discover the Heavy Load Discbase, the ultimate slatted base for those looking for unparalleled support and optimal sleeping comfort. This innovative slatted base is specially designed for people with a high body weight.
The fixed version is suitable for up to 240 kg, provided it is combined with a suitable bed or support base.
The electrically adjustable version is suitable for up to 180 kg and offers the same ergonomic support with additional adjustment comfort.
Thanks to the closely spaced discs, the load-bearing capacity is significantly increased, resulting in maximum density and unique ergonomic support. This makes the Discbase not only ideal for heavier users, but also offers excellent sleeping comfort for all weight categories.
One of the biggest advantages of the Heavy Load Discbase is the individual adjustability of each disc. This allows you to determine which zones are firm or soft, perfectly tailored to your personal preferences and needs — ideal for those who suffer from pressure points or pain when lying down.
Key features:
-
Load capacity, fixed version: up to 240 kg
-
Load capacity electric version: up to 180 kg
-
Material: Solid birch wood and quality Hytrel
-
Construction: Strong and durable with a frame height of 7 cm
-
Lifespan: Average 20–25 years
-
Warranty: 5 years
-
Delivery time: 5 weeks
Whether you choose the fixed version or the electrically adjustable variant, the Heavy Load Discbase offers an exceptional combination of strength, comfort, and durability. Perfect for combining with beds with a 20 cm bed frame for optimal support.
General Characteristics
- Load capacity, fixed version: up to 240 kg (provided that the bed or support base is suitable)
- Load capacity electric version: up to 180 kg
- Type: Available in fixed and electrically adjustable versions
- Support structure: Raised by closely spaced discs for maximum density and ergonomic support
- Adjustability: Individually adjustable saucers in hardness for customized sleep comfort
- Material: Solid birch wood and quality Hytrel
- Production: Made in Belgium
- Warranty: 5 years
Dimensions and Thickness
- Height of fixed slatted base: 15 cm
- Height of electrically adjustable slatted base: 16 cm (without motor)
- Lengths: 200 cm (standard), 210 cm, 220 cm
- Widths: 70 cm, 80 cm, 90 cm, 100 cm
- External dimensions: 1 cm less wide and 6 cm less long than mattress size (e.g., 89x194 cm for a 90x200 cm mattress)
Construction
- Support frame: Solid birch wood, 15-ply plywood, 7 cm high
- Dishes: Multidimensional Hytrel dishes, individually adjustable in hardness
- Reinforcement: Extra high density due to closely spaced dishes
Fixed Version
- Load capacity: Suitable up to 240 kg
- Lifespan: Average of 25 years with normal use
- Compatibility: Suitable for beds with 20 cm bed frame
- Note: For individuals weighing over 160 kg, additional reinforcement may be recommended. Contact us for customized solutions.

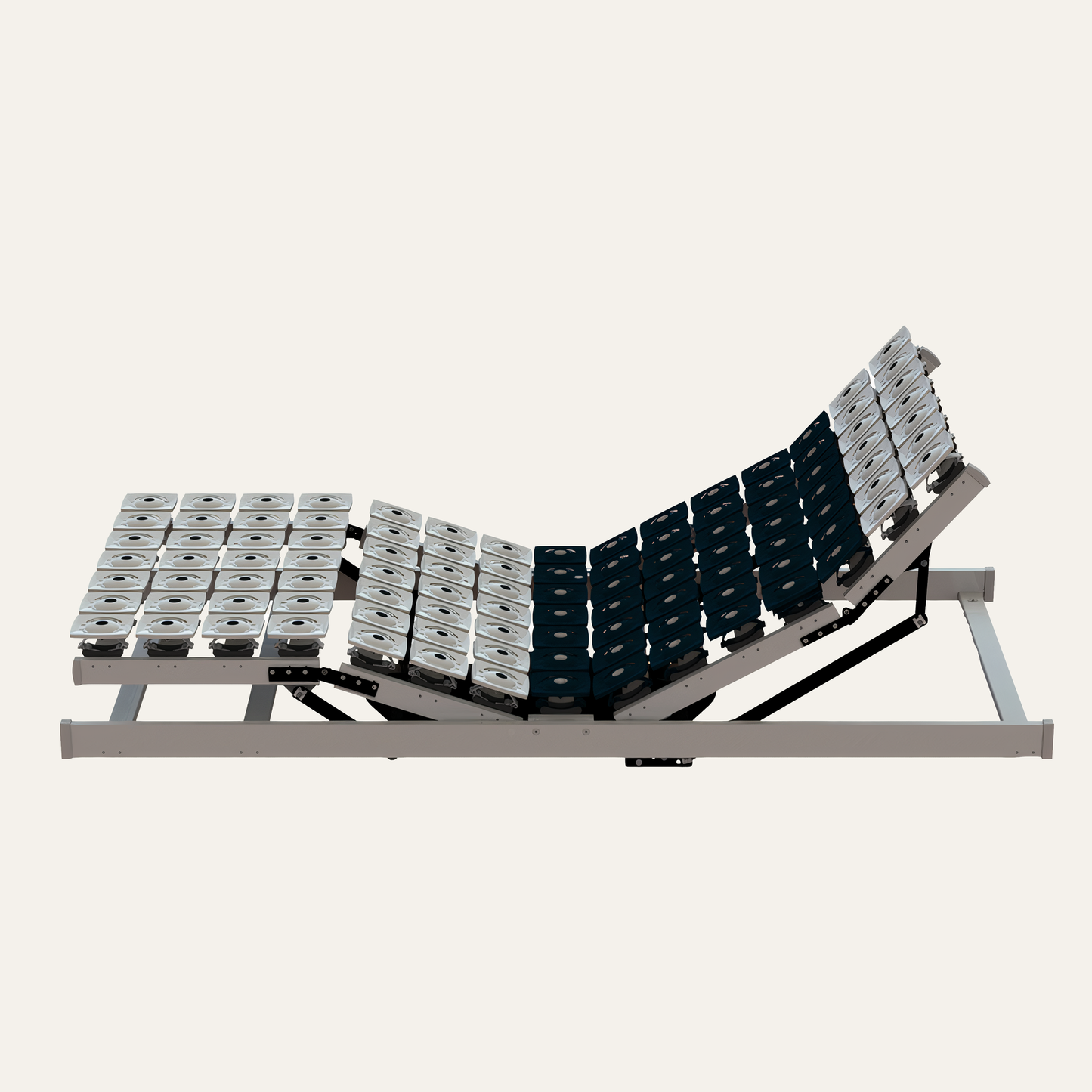

Electric Adjustable Version
- Load capacity: Suitable for up to 180 kg
- Lifespan: Average of 20 years with normal use
- Motors: 2 strong electric motors of 5500N
- Memory settings: Two programmable settings
- Synchronization: 2 slatted bases can be connected with 1 remote control
- Pullback function: Reduces tension on the mattress in crease zones
- Compatibility: Suitable for beds with 20 cm bed frame
- Note: For heavier weights, additional support legs may be required (optional).
Compatibility
- Suitable for beds with 20 cm bed frame
- Not suitable for beds with standard 15 cm bed frame
- Compatible with cold foam, latex, memory foam, polyether, Bonell, and pocket spring mattresses
